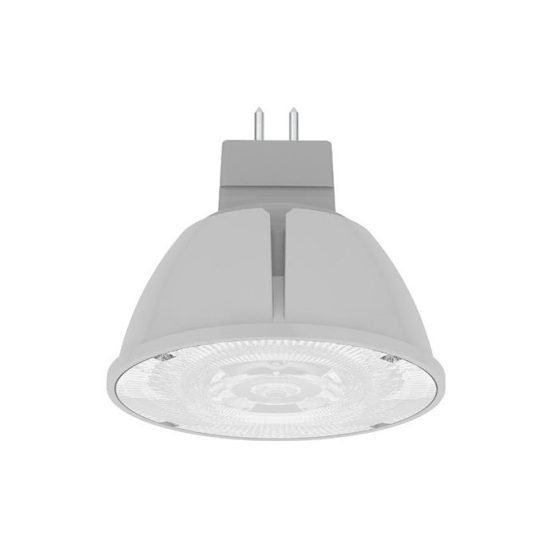

DR6R16 NEW GENERATION LED LAMP – MR16
The Superlight DR6R16 is a high quality 10W LED MR16 downlight lamp suitable for new and existing projects. The universal MR16 base and conventional MR16 dimensions allow the DR6R16 lamp to be retro-fitted into any existing MR16 LED downlight or other MR16 light fitting. Superlight MR16 LED lamps work with existing halogen transformers or constant voltage LED drivers. They incorporate very advanced passive-cooling heatsink design and superior Bridgelux LED chip for significantly increased light-output performance & luminance.DR6R16 MR16 12V, DR6R16 offers reliable performance, elevated style, and lower costs, all while delivering the durable form factor of MR16 LED lamp.
Specifications
| Input Voltage: | 12VAC/DC |
| Max Power Consumption: | 10 Watts |
| LED Quantity: | Single Chip Multi-LED COB |
| LED Classification: | Bridgelux |
| Lamp Base: | MR16 |
| LED Driver: | 12V Transformer or LED Driver Required |
| Dimensions: | MR16 D50 x H51mm |
| Thermal Management: | Advanced Passive Cooling |
| Optical Lens Material: | Patented Poly-PMMA |
| Recommended Ambient Temp: | -25 ~ +75°C |
Photometric Information
- DR6R16-27 Warm White
CCT 2700K CRI >90 - DR6R16-21 Warm White
CCT 3000K CRI >90 - DR6R16-17 Neutral White
CCT 4000K CRI >90 - DR6R16-15 Cool White
CCT 6000K CRI >85
Typical Applications
DR6R16 lamps are suitable for use with 12VAC or 12VDC power supplies. The latest LED MR16 lamps are commonly used in accent lighting for artwork, task lighting in kitchens, hallways, hotels, offices, retail environments, and other spaces requiring efficient, low-voltage illumination with consistent brightness and extended longevity. LED lighting for high efficiency and lower energy consumption.
Control & Dimming Compatibility
DR6R16 is dimmable when using the correct LED Driver and control interface. SUperlight has options to interface with phase dimers, 1-10V control, DMX512 and DALI. Contact Superlight for LED lighting control options.
Ordering Information
| DR6R16-27 | | 10W MR16 LED Lamp Warm White 2700K |
| DR6R16-21 | | 10W MR16 LED Lamp Warm White 3000K |
| DR6R16-17 | | 10W MR16 LED Lamp Neutral White 4000K |
| DR6R16-15 | | 10W MR16 LED Lamp Cool White 6000K |
Specify beam angle option* 12°/ 24°/ 36°/ 60°
Available in either white or black by special request
Customisation Options
- Custom LED colour temperatures available by request
- Several beam angle options available by request
- Minimum order quantity >250pcs applicable for some custom options
- Controller available separately for interface to DMX512, DALI-2
All product specifications are subject to change without notice. Superlight accepts no liabilities as a result of errors, updates or omissions. Please reconfirm all product details prior to ordering.
