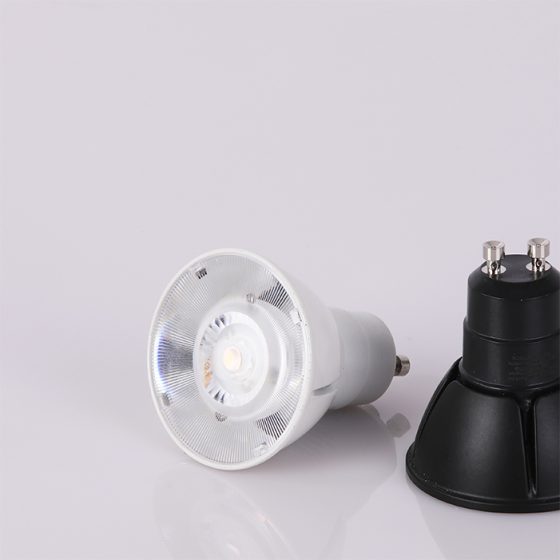

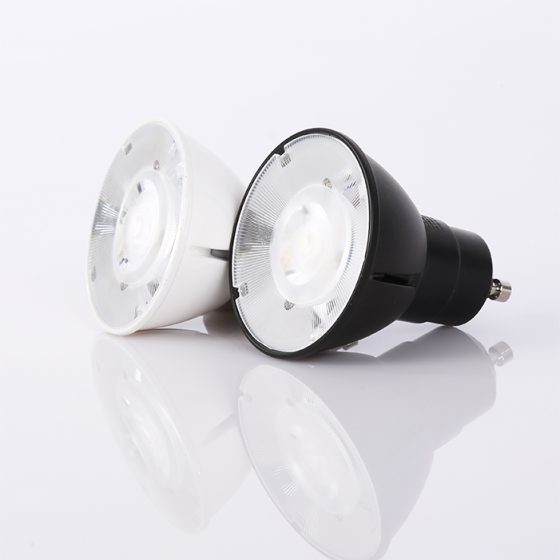

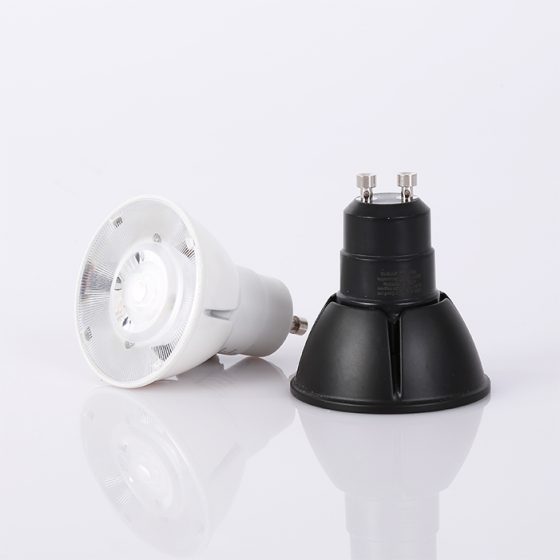

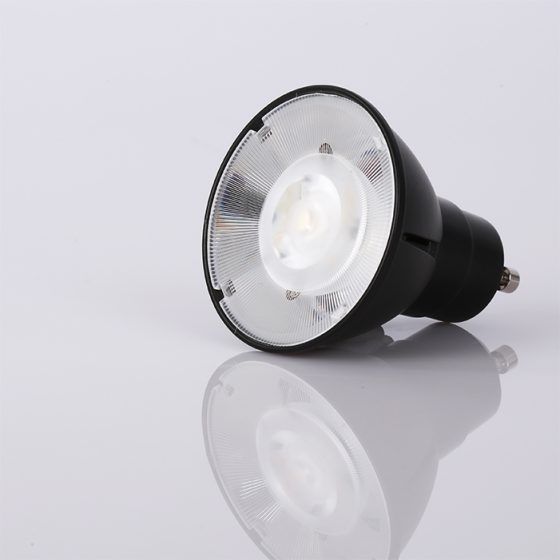

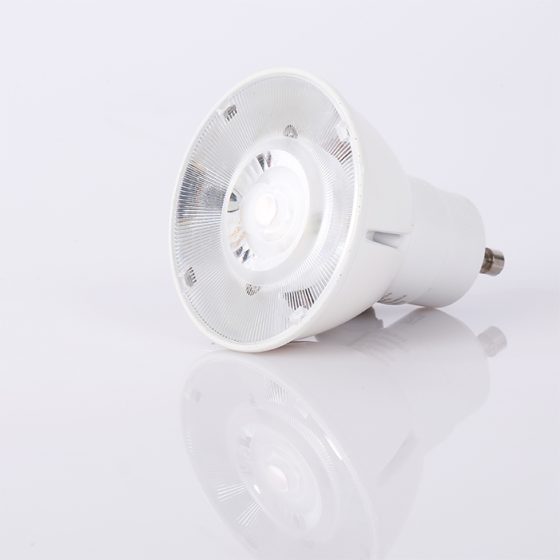

DR6U10 NEW GENERATION LED LAMP – GU10
The Superlight DR6U10 is a high-quality 10W LED GU10 energy-conserving downlight lamp. These LED GU10 lamps offer reliable performance and integrate seamlessly with existing fixtures, showcasing the benefits of LED lighting. By choosing our LED GU10 lamps, you elevate style, reduce costs, and experience the durability of LED lighting. Enjoy eco-friendly LED lighting that transforms homes with LED lighting. Switch to our LED GU10 lamps and embrace advanced LED lighting today.
Specifications
| Input Voltage: | 110-265VAC |
| Max Power Consumption: | 10 Watts |
| LED Quantity: | Single Chip Multi-LED COB |
| LED Classification: | Bridgelux |
| Lamp Base: | GU10 |
| Beam Angle Options: | 12°/ 24°/ 36°/ 60° |
| LED Driver: | Integral |
| Dimensions: | GU10 D50 x H54mm |
| Thermal Management: | Advanced Passive Cooling |
| Optical Lens Material: | Patented Poly-PMMA |
| Recommended Ambient Temp: | -25 ~ +75°C |
Photometric Information
- DR6U10-27 Warm White
CCT 2700K CRI >90 - DR6U10-21 Warm White
CCT 3000K CRI >90 - DR6U10-17 Neutral White
CCT 4000K CRI >90 - DR6U10-15 Cool White
CCT 6000K CRI >85
Typical Applications
Replacing conventional lamps in GU10 fittings and fixtures. Ideal for ambient or task illumination, this GU10 lamp is commonly used in living rooms, kitchens, offices, retail shops, hotel lobbies, restaurants, and corridors, light fittings, GU10 lamp holders.
Control & Dimming Compatibility
DR6U10 is available in non-dimmable and phase dimmable versions. It can be configured with a compatible controller available in dimmable configurations including Phase Dim, DALI, 1-10V, DMX512.Please contact us for options and availability.
Ordering Information
| DR6U10-27 | | 10W GU10 LED Lamp Warm White 2700K |
| DR6U10-21 | | 10W GU10 LED Lamp Warm White 3000K |
| DR6U10-17 | | 10W GU10 LED Lamp Neutral White 4000K |
| DR6U10-15 | | 10W GU10 LED Lamp Cool White 6000K |
Specify beam angle option* 12°/ 24°/ 36°/ 60°
Available in either white or black by special request
Customisation Options
- Custom LED colour temperatures available by request
- Several beam angle options available by request
- Minimum order quantity >250pcs applicable for some custom options
- Controller available separately for interface to DMX512, DALI-2
All product specifications are subject to change without notice. Superlight accepts no liabilities as a result of errors, updates or omissions. Please reconfirm all product details prior to ordering.
