SUPERLIGHT FK315 CCT LED FESTOON LIGHTING KIT

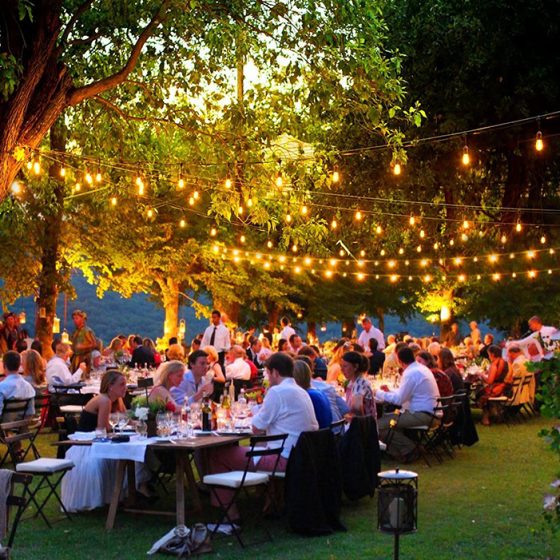

FK315 is a new festoon LED lighting kit suitable for commercial or domestic lighting use. Applications include venues, restaurant lighting, tree lighting , weddings, events, courtyards, alfresco lighting, awnings, feature lighting and more. F315CCT features advanced Tunable LED technology which gives the user total control of the colour temperature output by remote control. Switchable/Tunable 2700K-4000K-5000K

SPECIFICATIONS

Input Voltage:12VDC
Festoon Cable Loom:14.6mtrs
Lamp Spacing:1mtr
Lead in Cable Length:1mtr
Number of Lamps (Kit)15
LED Lamp Classification:E26 S14 LED RGBW
LED Lamp Max Power:Max 1W
Max Total Power (14.6mtr Kit)15W
LED Lamp CCT Options:Can Switch between 2700K/4000K/5000K
Control Modes:Brightness / CCT Setting / Timer Control
IP Protection Rating:IP65

CONNECTION & INSTALLATION GUIDELINES

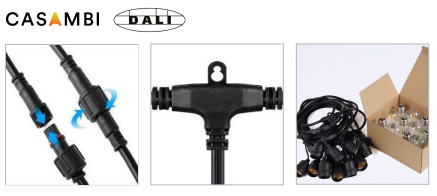

● IP65 connectors allow multiple kits (max 3 kits) to be series connected
● Do not connect more than 3 kits per string. Serious damage can occur.
● Ensure total load does not exceed rated capacity of 12VDC LED

CUSTOMISATION OPTIONS

Custom lampholder spacing available by special request
White cable loom/lampholders available by special request
Dimming and control options available by request including DALI, Casambi
RGBW control option available by request (FK315RGBW)
* Some customisation options are subject to minimum order quantities

REMOTE CONTROL FUNCTIONS (INCLUDED)

FK315CCT features tunable CCT LED lamps. With built in digital control, the CCT to be selected easily by remote control. Other functions include wireless on/off control, brightness settings (dimming level) and remote controlled timer settings.

ORDERING INFORMATION

Series Model Number:            FK315CCT

Total Length:                            14.6mtrs

Lampholder Spacing:              1mtr

Lead in Cable Length:             1mtr

Cable Loom/Lampholder       Black



All product specifications are subject to change without notice. Superlight accepts no liabilities as a result of errors, updates or omissions. Please re-confirm all product details prior to ordering.
