FLEX560 SMD Rigid LED strips for backlighting

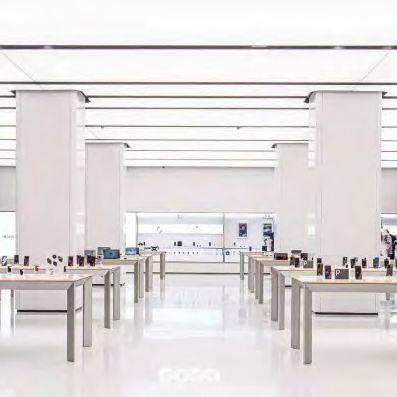

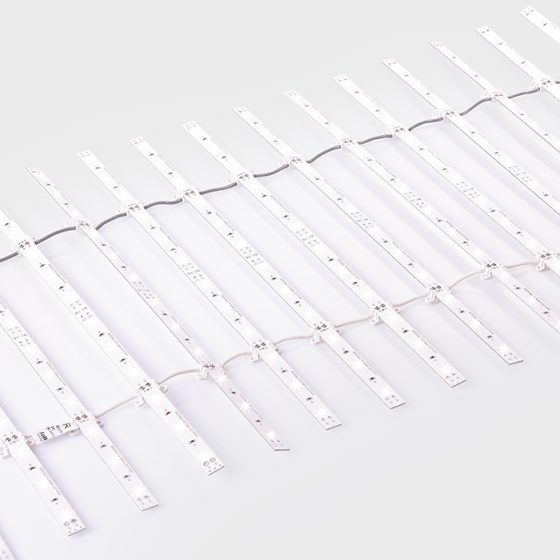

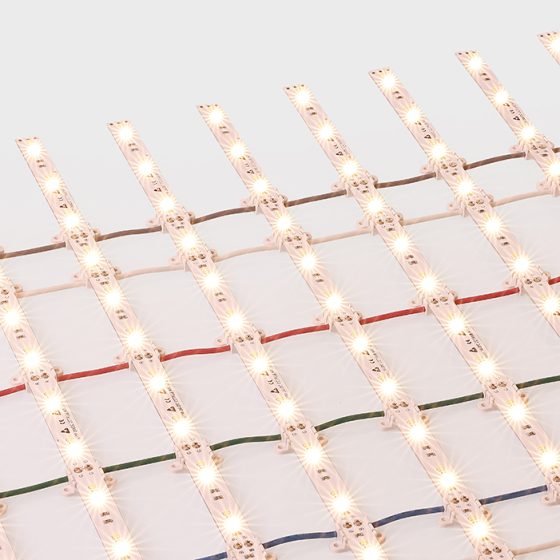

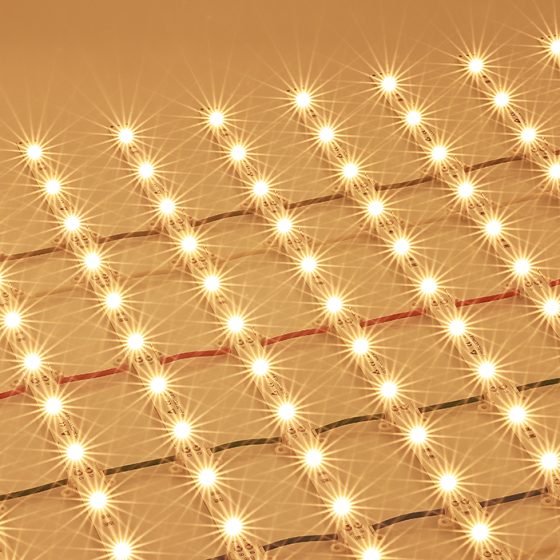

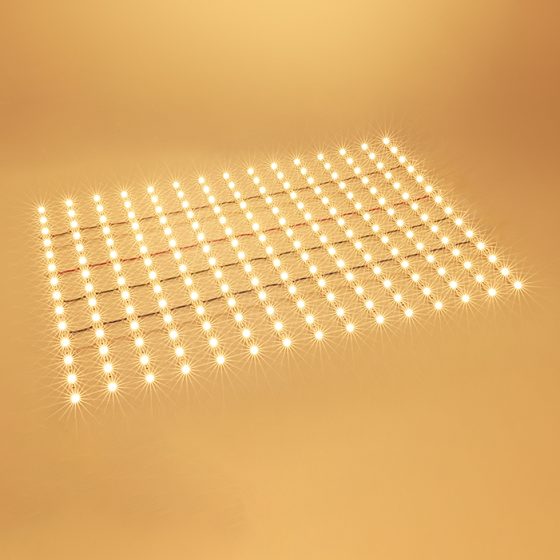

FLEX560 Backlighting strips is a powerful, rigid LED bar system, designed primarily for backlighting projects. Configured in a unique lattice format, it offers both mono single colour and advanced RGBW options. Boasting high-quality illumination, FLEX560 ensures consistent, vibrant backlighting, making it an ideal choice for professional and aesthetic applications.
Specifications
| Model Number: | FLEX560 |
| Input Voltage: | 24VDC |
| Max LED Power: | 10W per 560 mm Strip |
| LED Driver Classification: | Constant Voltage |
| Light Source Classification: | SMD5050 LED |
| Fixing Method: | Screw Fix Surface / Suspended |
| IP Protection Rating: | IP20 (IP67 Optional) |
| Strip Length: | 560mm |

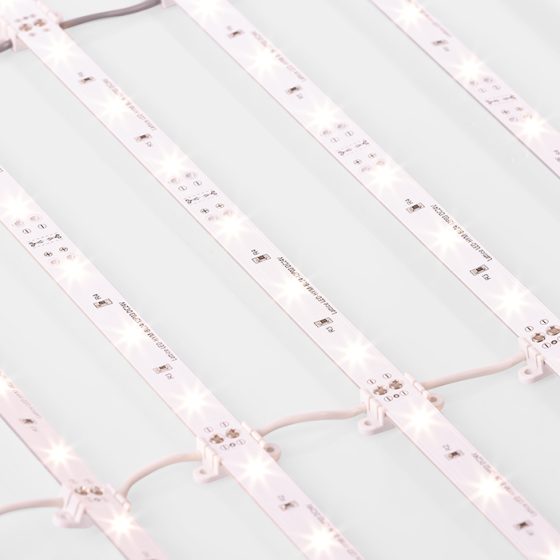

| Construction Material: | Pure Copper Rigid PCB |
| Max Number of Strips: | Pre-Wired Sets up to 15 Strips |
| Default Strip Pitch: | 60mm Pitch |
| Rec. Ambient Temp: | -25~50°C : Max Tcp 60 °C |
Configuration Options
● LED Strip pitch arrangements can be configured by request

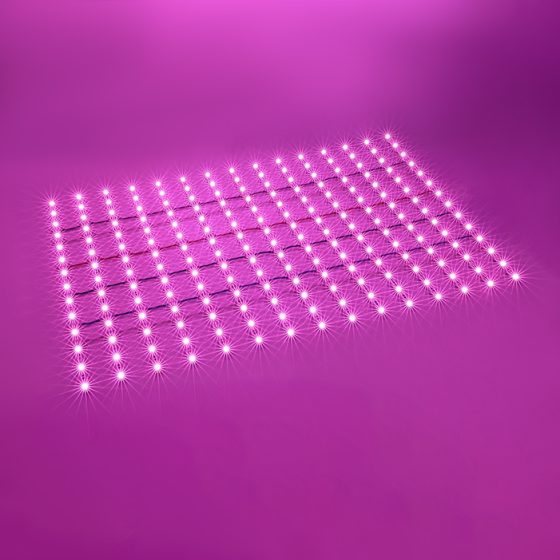

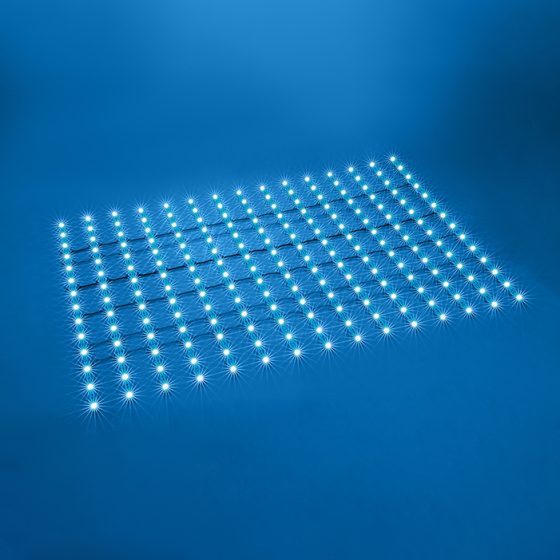

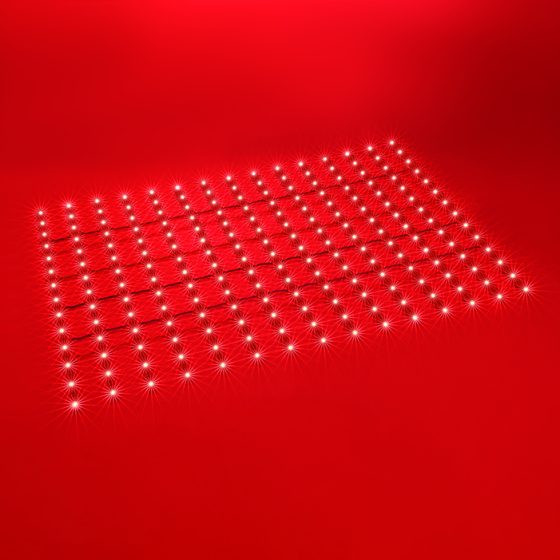

● Single (Mono) colour or RGBW or CCT option available
● Controllable by PWM: DALI, DALI-2(DT8) or DMX512
● 160° spreader lens optic accessory available by request
Photometric Information
● Typical Lumen Efficacy: 110lm/W
● Single Colour CCT Options: Refer to CCT Options
● Beam Angle/Viewing Angle: 120° Wide Spread
Control Options
FLEX560 Backlighting strips can be customised or configured according to the needs of your project. Dimming and control options are available. Control protocols include DALI, DT8, Casambi, Wireless, 1-10V, analogue dimming.
Compliance and Certification
● IESNA2002, EMC Compliance SDOC
● AS/NZS60598, LM79, LM80
● Lifespan: Exceeds 50,000hrs @ L70
Ordering Information
| Series Model Number: | FLEX560 |
| Specify LED CCT: | 2200K-6500K or RGBW / RGB+CCT |
| IP Rating: | IP20 (IP67 By Special Request) |
| Specify LED Power: | 4W / 5.6W / 8.6W / 10W |
| Specify Strip Set: | Pre-Wired Up to 15 x 560mm Strips |
| Strip Pitch: | 60mm / 80mm/ Custom___________ |
| Input Voltage Option: | 24VDC |
All product specifications are subject to change without notice. Superlight accepts no liabilities as a result of errors, updates, or omissions. Please reconfirm all product details prior to ordering.
