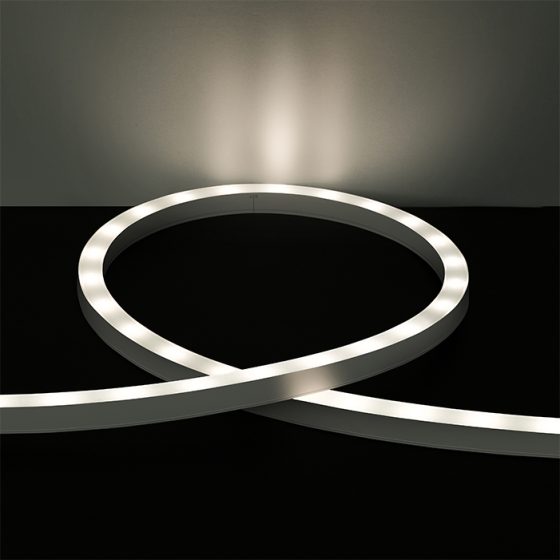

FLX818 HIGH POWERED FLEXIBLE LED WALL WASHER FLEX
FLX818 is a highly flexible and adaptable modular LED lighting solution designed for both indoor and outdoor applications. Ideal for curved wall washing, backlighting, feature lighting, and specialty projects, its innovative modular design ensures easy installation and customization. With flexible cable reticulation options—rear or end entry—it’s the perfect choice for architects and designers seeking creative, efficient lighting solutions. Flexible LED lighting product for creative lighting spaces.
Specifications
| Series Model Number: | FLX818 |
| Mounting Configuration: | Modular / Flexible / Channel Mounted |
| Input Voltage: | 24VDC |
| Max Power Consumption: | Up to 22W Per Mtr |
| Typical Light Source Efficacy: | 110lm/W |
| Profile Dimensions: | 18x18mm |
| Module Length Options: | Refer to Table |
| LED Classification: | Epistar SMD2835 |
| Colour/Finish: | Silver / Black / White / Custom |
| Optional Profile Material: | Extruded Aluminium |
| Beam Angle Options: | 15° / 20° / 25° / 38° / 60° / 20×40° |
| LED Driver Power Factor: | >0.9 Typ.( Constant Voltage DR11) |
| IP Protection Rating: | IP68 |
| Recommended Ambient Temp: | -40 ~ +55°C |
Photometric Information
- FLX818-2700K
CCT: 2700K CRI: >85 - FLX818-3000K
CCT: 3000K CRI: >85 - FLX818-4000K
CCT: 4000K CRI: >85 - FLX818-6000K
CCT: 6000K CRI: >80
CRI 90/95 available by special request.
Typical Applications
FLX818 curved wall washing, curved LED lighting, ideal for facade lighting, architectural accentuation, landscape highlighting, signage illumination, indoor features, art display lighting, commercial space ambiance, dynamic lighting effects in entertainment venues. Indoor and outdoor linear LED lighting.
Control & Dimming Compatibility
Single colour version can be controlled via constant voltage LED dimming controller (available separately). Control options include DMX512, Wireless RF, DALI-2 and automation. DMX512 DALI DT8 is available for RGBW configuration.
Ordering Information
| FLX818-SC | FLX818 IP68 ENCAPSULATED LED STRIP – SINGLE COLOUR |
| FLX818-CCT | FLX818 IP68 ENCAPSULATED LED STRIP – CCT TUNABLE |
| FLX818-RGB | FLX818 IP68 ENCAPSULATED LED STRIP – RGB |
| FLX818-RGBW | FLX818 IP68 ENCAPSULATED LED STRIP – RGBW |
| FLX68-92 | FLX818 RIGID MOUNTING CHANNEL – 2MTR |
| FLX68-91F | FLX818 FLEXIBLE MOUNTING CHANNEL – 1MTR |
Customisation Options
- Available in various custom length(s)
- Interconnection IP68 cable looms by special request
- Factory-made custom lengths rated to IP68
- Optional CCT tunable and RGB(W) LED options by request
- **Some custom options may be subject to minimum quantities
Specifications noted are typical values and may vary depending on the exact configuration ordered. All product specifications are subject to change without notice. Superlight accepts no liabilities as a result of errors, updates or omissions. Please reconfirm all product details and specifications at the time of ordering.
