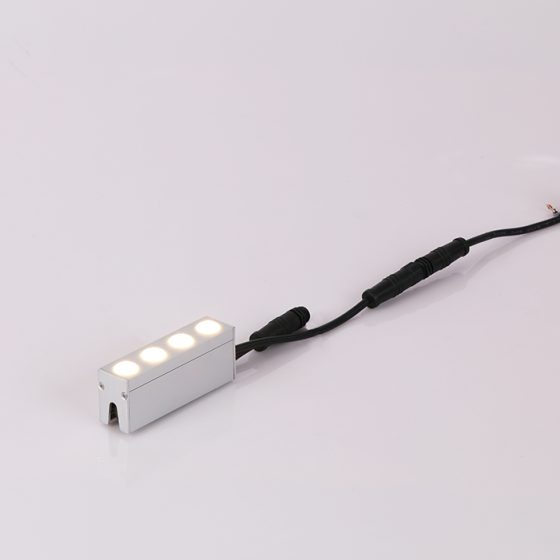

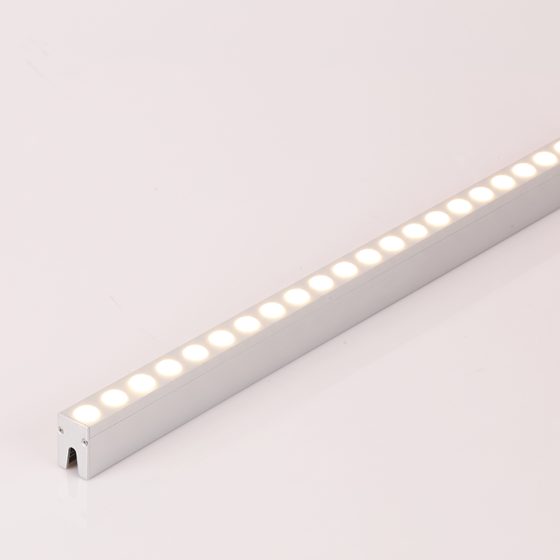

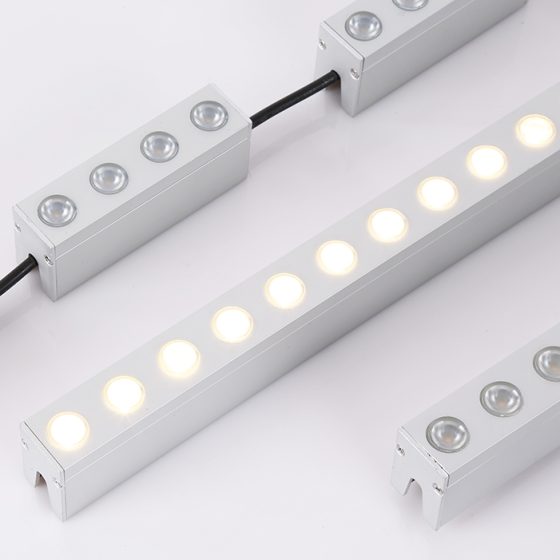

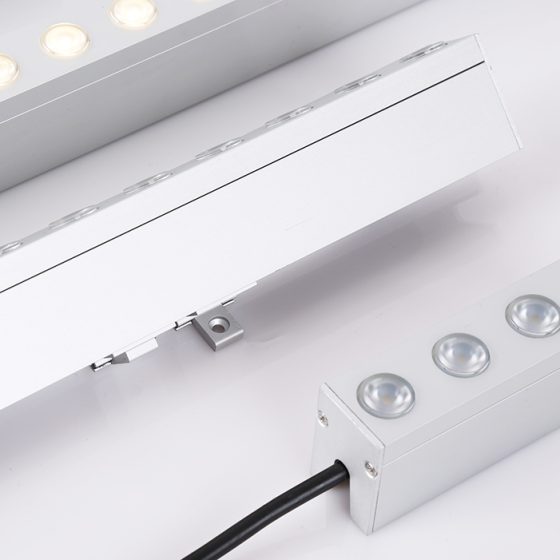

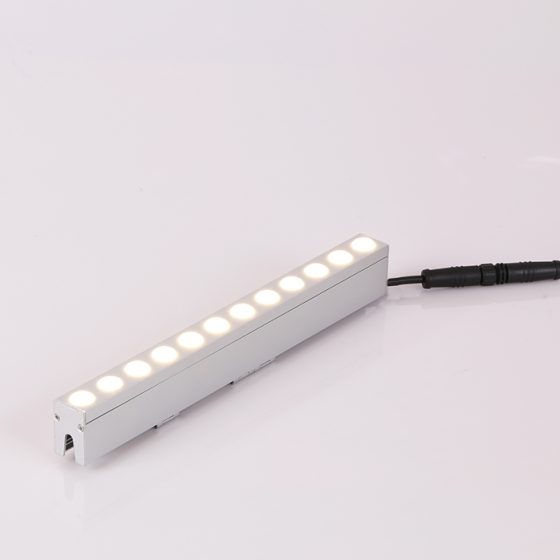

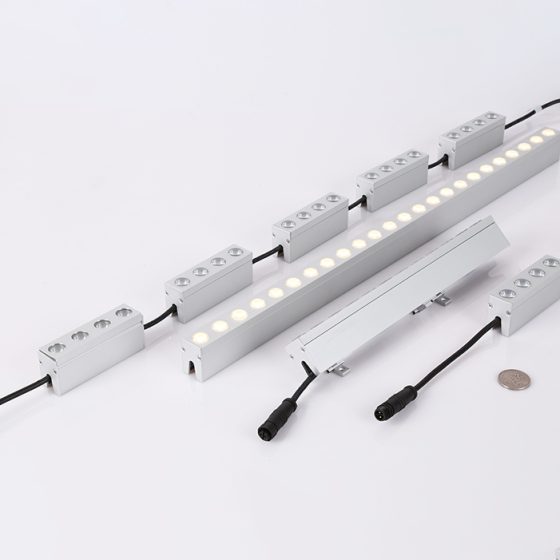

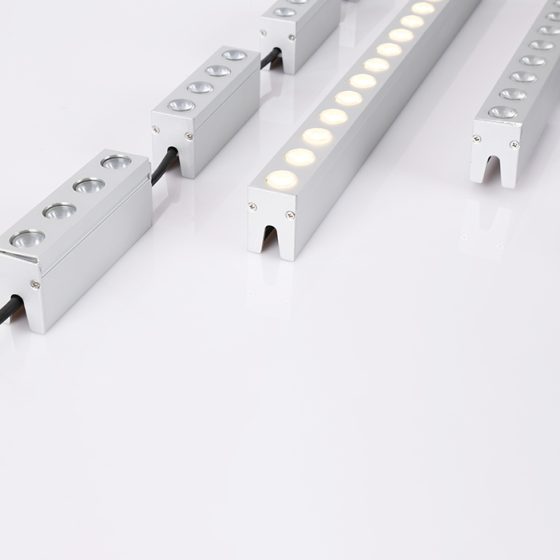

SL9340 HIGH POWERED MODULAR LINKABLE WASHER SERIES

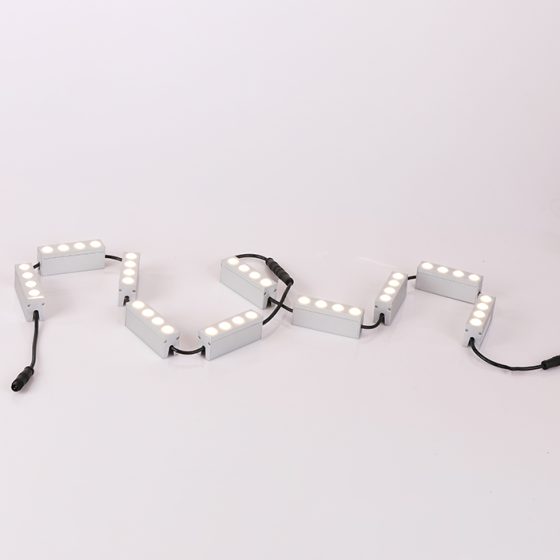

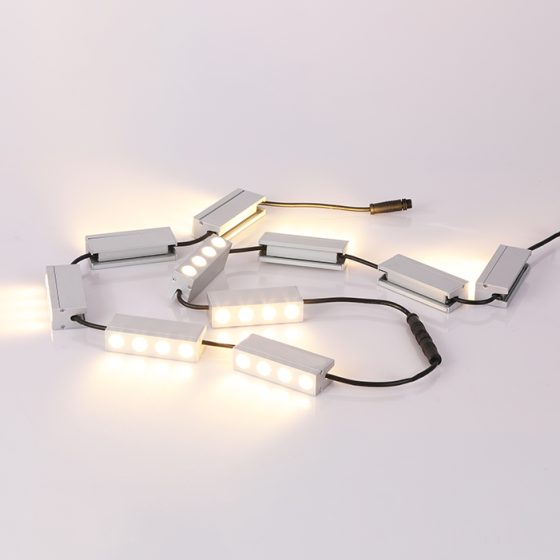

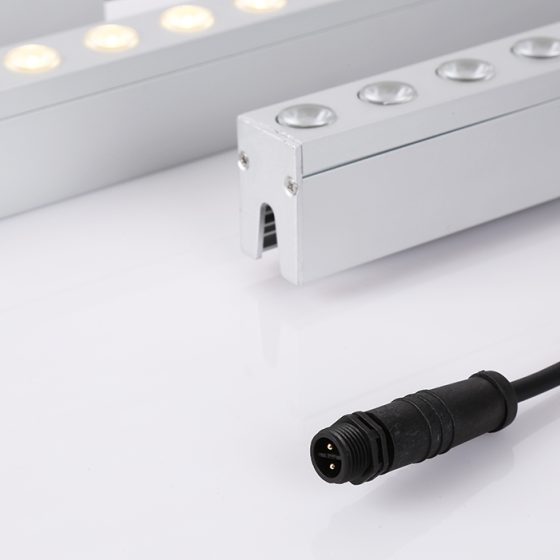

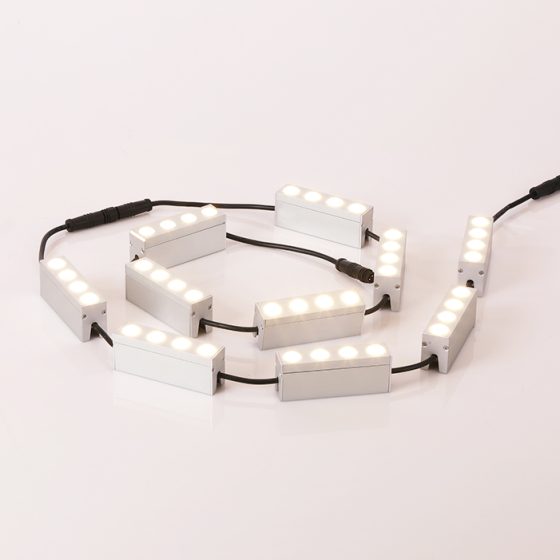

SL9340, a versatile modular LED lighting product, is perfectly crafted for both indoor and outdoor applications, including curved washing, special lighting projects, backlighting, and feature lighting. Its unique modular design facilitates easy installation and customisation, making it a go-to solution for architects and designers seeking innovative and efficient lighting solutions for unique spaces. The linkable wall washing design allows for cable reticulation in either rear entry or end entry.
SPECIFICATIONS
| Series Model Number: | SL9340 |
| Mounting Configuration: | Modular / Surface Mounted |
| Input Voltage: | 24VDC |
| Max Power Consumption: | Up to 25.2W Per Module |
| Typical Light Source Efficacy: | 100lm/W |
| Profile Dimensions: | 25x31mm |
| Module Length Options: | Refer to Drawing |
| LED Classification: | CREE XPE LED |
| Colour/Finish: | Silver / Black / White / Custom |
| Optional Profile Material: | Extruded Aluminium |
| Beam Angle Options: | 20° / 30° |
| LED Driver Power Factor: | >0.9 Typ. Constant Voltage |
| IP Protection Rating: | IP40 |
| Recommended Ambient Temp: | -20 ~ +55°C |
PHOTOMETRIC INFORMATION
| SL9340 2700K | 1CCT: 2700K CRI >85 |
| SL9340 3000K | 1CCT: 3000K CRI >85 |
| SL9340 4000K | 1CCT: 4000K CRI >85 |
| SL9340 6000K | 1CCT: 5000K CRI >80 |
CRI 90/95 available by special request
TYPICAL APPLICATIONS
SL9340 linkable wall washing modules are ideal for facade lighting, architectural accentuation, landscape highlighting, signage illumination, indoor features, art display lighting, commercial space ambience, and dynamic lighting effects in entertainment venues.
CONTROL & DIMMING COMPATIBILITY
Single colour version can be dimmed via a constant voltage LED dimming controller (available separately), RGBW colour change control via any Superlight RGB(W) controller. Optionc inc DMX512, Wireless RF, DALI-2 and automation.
ORDERING INFORMATION
| SL9340L4 | High Power LED Module IP67 100mm 4.2W |
| SL9340L8 | High Power LED Module IP67 200mm 8.4W |
| SL9340L12 | High Power LED Module IP67 300mm 12.6W |
| SL9340L21 | High Power LED Module IP67 500mm 21.0W |
| SL9340L25 | High Power LED Module IP67 600mm 25.2W |
| SL9340L4 | High Power LED Module IP67 5 x 100mm Set 210W |
CUSTOMISATION OPTIONS

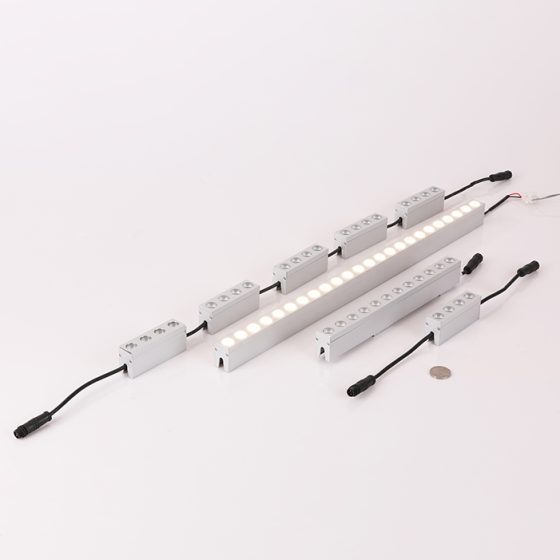

Available in various module length(s)
Interconnection cable looms can be ordered by special request
Modules can be refinished if required
Optional CCT tunable and RGB(W) LED options by request
**Some custom options may be subject to minimum quantities
Specifications noted are typical values and may vary depending on the exact configuration ordered. All product specifications are subject to change without notice. Superlight accepts no liabilities as a result of errors, updates or omissions. Please reconfirm all product details and specifications at the time of ordering.
DIMENSIONS & CONFIGURATIONS
| Model | Dimensions (mm) | Inch (in) | Input Voltage (V) | Max Power (W) |
| SL9340L4 | 100 | 3.9 | 24V DC | 4.2 |
| SL9340L8 | 20 | 7.9 | 24V DC | 8.4 |
| SL9340L12 | 300 | 11.8 | 24V DC | 12.6 |
| SL9340L21 | 500 | 19.7 | 24V DC | 21.0 |
| SL9340L25 | 600 | 23.6 | 24V DC | 25.2 |

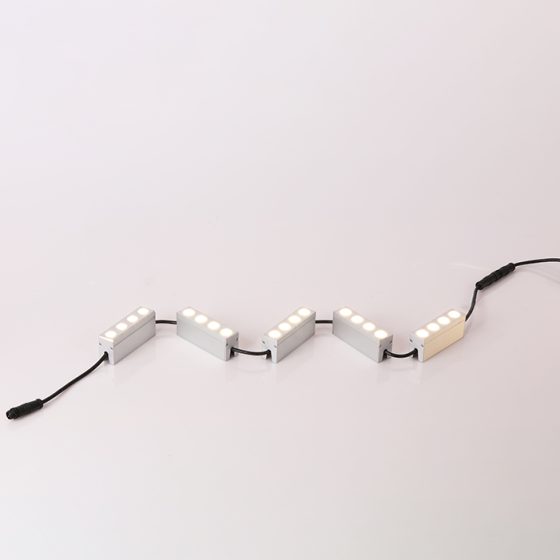

| SL9340L4X5 | 100X5 | 3.9 X 5 | 24V DC | 21.0 |
It is recommended that the total connected load on any single interconnected line does not exceed 120W.
