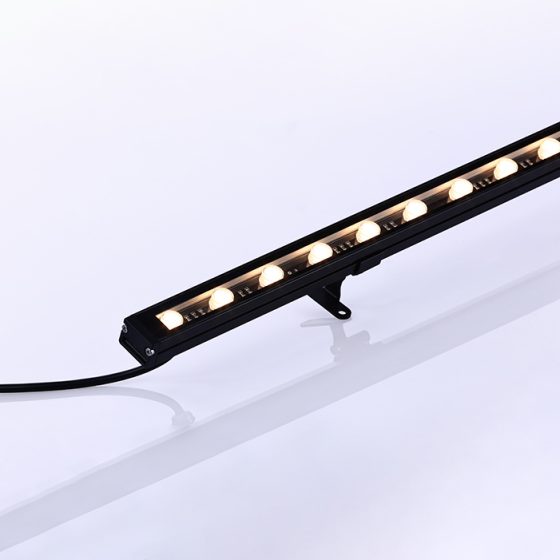

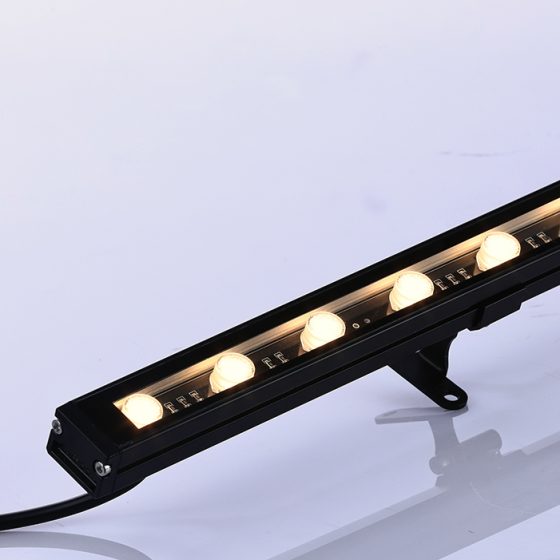

SUPERLIGHT CITY FACADE LINEAR LED FITTING SL9639
SL9639 is a slimline linear LED luminaire with high-quality components and strong, powerful illumination. City-facade is IP66-rated and available in several lengths and configurations. Excellent for facade lighting, wall washing, exterior or interior projects and multiple units can create continuous linear lighting installations. SL9639 can be configured with an optional glare visor and special options.
SPECIFICATIONS
| Series Model Number: | SL9639 |
| Input Voltage: | 24VDC |
| Power Consumption: | 12W / 24W / 36W |
| Nominal Fixture Lengths: | 500mm / 1000mm |
| Included Accessory: | Adjustable Brackets, Lead-in Cable |
| Fixture Material: | High-Density Anodised Aluminium |
| LED Classification: | Nichia SMD2835/SMD5050 |
| Typical Light Source Efficacy: | 135lm/W |
| Light Source CRI: | >90 |
| Beam Angle Options: | 15° / 50° / 35×25° |
| Recommended Ambient Temp: | -20 ~ +55°C |
| IP Protection Rating: | IP66 |
PHOTOMETRIC INFORMATION
| SL9639 | CCT: 6000K CRI: >9 |
| SL9639 | CCT: 4000K CRI: >90 |
| SL9639 | CCT: 3000K CRI: >90 |
| SL9639 | RGB / RGBW |
Detailed photometric report and IES files available by request
TYPICAL APPLICATIONS
Wall-washing, Grazing projects, Building facade lighting, landscape lighting, architectural highlighting, commercial projects, hotels & hospitality projects, residential applications, signage and feature lighting, theatres and venues.
CONTROL & DIMMING COMPATIBILITY
Superlight City Facade luminaires are dimmable via PWM control and can be controlled via any Superlight constant voltage PWM dimming interface. Typical options include Superlight 1-10V Analogue, DALI, or DMX512 RGB/RGBW version, which is controllable with any Superlight 12/24VDC Colour Controller
ORDERING INFORMATION
| SL9639L500 | Facade Linear LED Luminaire IP66 24VDC 500mm |
| SL9639L1000 | Facade Linear LED Luminaire IP66 24VDC 1000mm |
| SL9639GL500 | Glare Louvre for 500mm Luminaire |
| SL9639GL1000 | Glare Louvre for 1000mm Luminaire |
| LED Configuration | Single colour inc 2700K /3000K / 4000K / 5000K |
| Optional RGB/W | RGB / RGBW DMX512 Version with Built in DMX Decoder |
CUSTOMISATION OPTIONS
Colour can be refinished by special request
RGBW configuration can be with on-board DMX512
Custom options may be subject to minimum order quantities
All product specifications are subject to change without notice. Superlight accepts no liabilities as a result of errors, updates or omissions. Please reconfirm all product details prior to ordering.
